Custom Designed Cutting Tools Made in New Zealand
$30.12 – $106.89

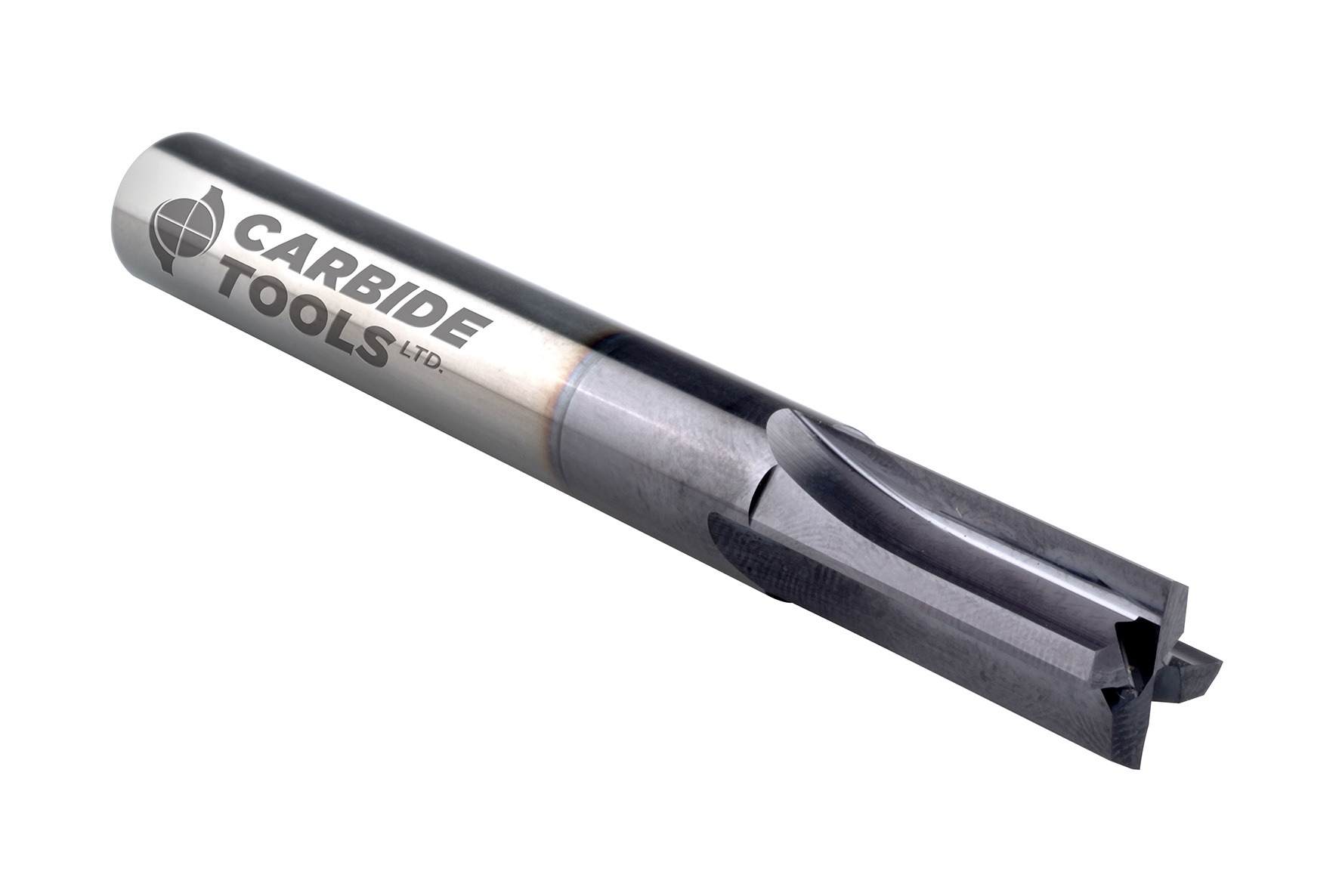

MICRO GRAIN SOLID CARBIDE
DESIGN FEATURES: The straight flute is preferred where the workpiece is fairly rigid.
Excellent for routing harder materials that require a fine finish
4 Flutes offers faster cutting.
Helps to hold perpendicularily 2 & 4 straight flutes. Smooth Running.
Designed to mill abrasive glass filled plastic with reinforcing fibre & other additives.
Ideally suited to cut: ABS, MDF, Acrylic, Fibreglass, Nylon phenolic & PVC
Widely used on materials suh as Plexiglass and Perspex.
* On request: Out of Range / Other sizes
TiALN Coated for steels
| wdt_ID | Cutting Diameter | Flute Length | Overall Length | Shank Diameter | Flutes | TiALN | Product Code |
|---|---|---|---|---|---|---|---|
| 1 | 3mm | 9 | 51 | 6 | 4 | • | 76C40300051 |
| 2 | 4mm | 14 | 51 | 6 | 4 | • | 76C40400051 |
| 3 | 6mm | 19 | 51 | 6 | 4 | • | 76C40600051 |
| 4 | 8mm | 21 | 63 | 8 | 4 | • | 76C40800063 |
| 5 | 10mm | 22 | 76 | 10 | 4 | • | 76C41000076 |
| 6 | 12mm | 25 | 76 | 12 | 4 | • | 76C41200076 |
| 7 | 14mm | 30 | 89 | 14 | 4 | • | 76C41400089 |
| 8 | 16mm | 32 | 89 | 16 | 4 | • | 76C41600089 |
