$20.34 – $230.93

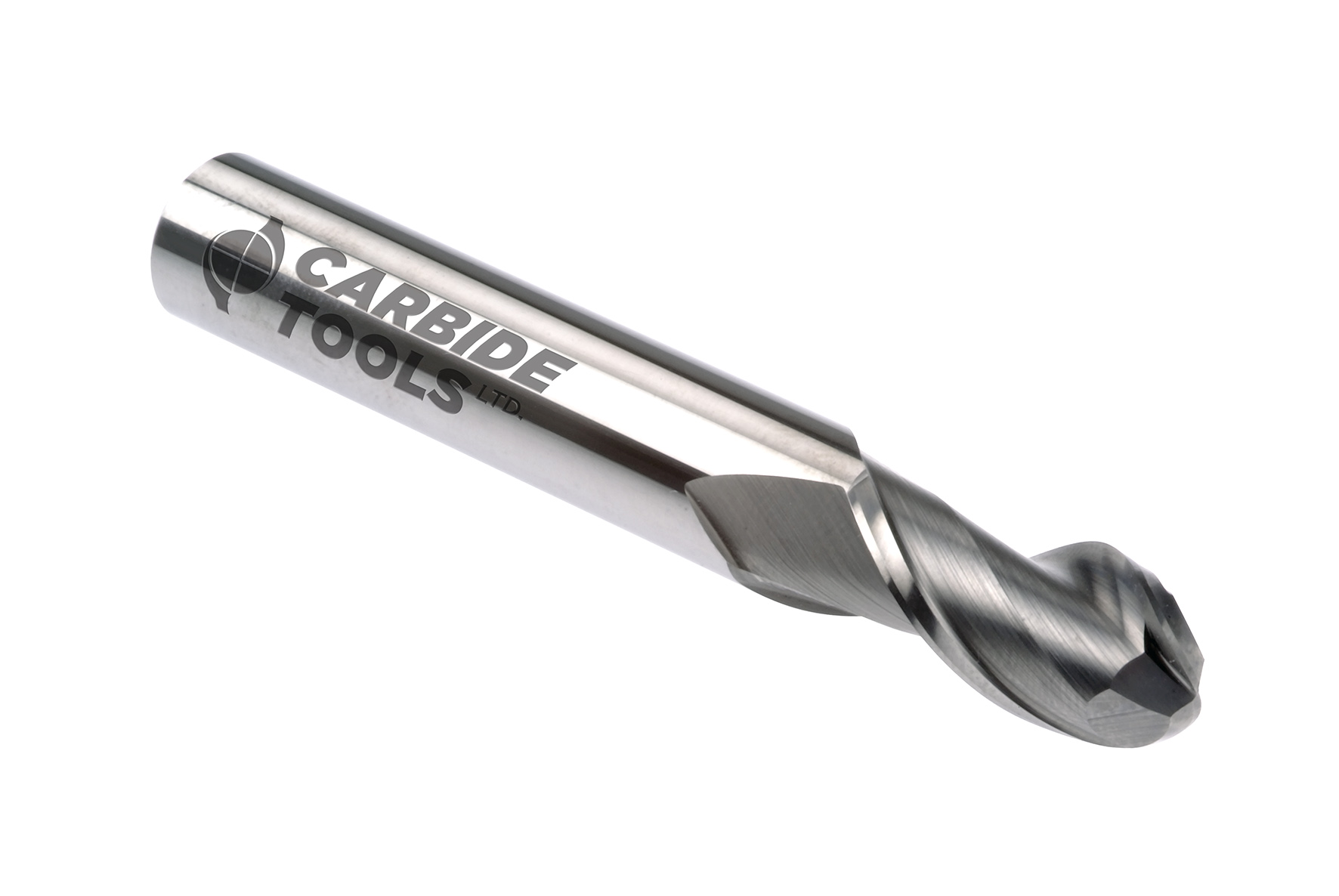

MICRO GRAIN SOLID CARBIDE
DESIGN FEATURES: Helix angle 30º, Right hand cutting, Centre cutting
Suitable for general purpose milling of most materials, steels, non-ferrous materials
* On request: Out of Range / Other sizes and uncoated product
| wdt_ID | Cutting Diameter | Flute Length | Overall Length | Shank Diameter | TiALN | Product Code |
|---|---|---|---|---|---|---|
| 1 | 2mm | 9 | 39 | 6 | • | 53U20200039 |
| 2 | 3mm | 9 | 39 | 6 | • | 53U20300039 |
| 3 | 4mm | 14 | 51 | 6 | • | 53U20400051 |
| 4 | 5mm | 16 | 51 | 6 | • | 53U20500051 |
| 5 | 6mm | 19 | 51 | 6 | • | 53U20600051 |
| 6 | 7mm | 21 | 63 | 8 | • | 53U20700063 |
| 7 | 8mm | 21 | 63 | 8 | • | 53U20800063 |
| 8 | 9mm | 22 | 76 | 10 | • | 53U20900076 |
| 9 | 10mm | 22 | 76 | 10 | • | 53U21000076 |
| 10 | 11mm | 25 | 76 | 12 | • | 53U21100076 |
| 11 | 12mm | 25 | 76 | 12 | • | 53U21200076 |
| 12 | 14mm | 30 | 89 | 14 | • | 53U21400089 |
| 13 | 16mm | 32 | 89 | 16 | • | 53U21600089 |
| 14 | 18mm | 35 | 102 | 18 | • | 53U21800102 |
| 15 | 20mm | 38 | 102 | 20 | • | 53U22000102 |
| 16 | 22mm | 38 | 102 | 22 | • | 53U22200102 |
| 17 | 25mm | 38 | 102 | 25 | • | 53U22500102 |
