Custom Designed Cutting Tools Made in New Zealand
$49.28 – $148.88

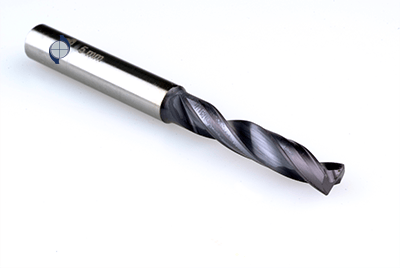

DESIGN FEATURES: Helix angle 30º to promote rapid chip evacuation
Rolled point. 140º Point angle, strong tapered flute core.
Short length. Tap drill sizes.
Advanced material and geometry.
More rigid design for improved drill accuracy
| wdt_ID | Cutting Diameter | Flute | Overall Length | Shank Diameter | Product Code |
|---|---|---|---|---|---|
| 1 | 3mm | 20 | 55 | 4 | 66C20300055 |
| 2 | 3.3mm | 20 | 55 | 4 | 66C20330055 |
| 3 | 3.5mm | 20 | 55 | 4 | 66C20350055 |
| 4 | 4mm | 25 | 55 | 4 | 66C20400055 |
| 5 | 4.2mm | 32 | 62 | 5 | 66C20420062 |
| 6 | 4.5mm | 32 | 62 | 5 | 66C20450062 |
| 7 | 5mm | 32 | 62 | 5 | 66C20500062 |
| 8 | 5.5mm | 36 | 66 | 6 | 66C20550066 |
| 9 | 6mm | 36 | 66 | 6 | 66C20600066 |
| 10 | 6.3mm | 42 | 74 | 7 | 66C20630074 |
| 11 | 6.5mm | 42 | 74 | 7 | 66C20650074 |
| 12 | 6.8mm | 42 | 74 | 7 | 66C20680074 |
| 13 | 7mm | 42 | 74 | 7 | 66C20700074 |
| 14 | 7.5mm | 46 | 79 | 8 | 66C20750079 |
| 15 | 8mm | 46 | 79 | 8 | 66C20800079 |
| 16 | 8.5mm | 50 | 84 | 9 | 66C20850084 |
| 17 | 9mm | 50 | 84 | 9 | 66C20900084 |
| 18 | 9.5mm | 53 | 89 | 10 | 66C20950089 |
| 19 | 10mm | 53 | 89 | 10 | 66C21000089 |
| 20 | 10.2mm | 55 | 95 | 11 | 66C21020095 |
| 21 | 10.5mm | 55 | 95 | 11 | 66C21050095 |
| 22 | 11mm | 55 | 95 | 11 | 66C21100095 |
| 23 | 11.5mm | 62 | 102 | 12 | 66C21150102 |
| 24 | 12mm | 62 | 102 | 12 | 66C21200102 |
| 25 | 12.5mm | 62 | 102 | 13 | 66C21250102 |
| 26 | 12.7mm | 62 | 102 | 13 | 66C21270102 |
| 27 | 13mm | 62 | 102 | 13 | 66C21300102 |
| 28 | 14mm | 62 | 102 | 14 | 66C21400102 |
