Custom Designed Cutting Tools Made in New Zealand
Carbide Tools

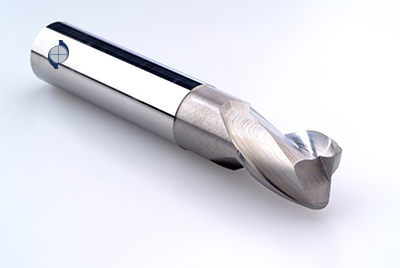

ALU RAPID End Mill 2 Flute Standard Series

MICRO GRAIN SOLID CARBIDE
For plastic, graphite & wood

DESIGN FEATURES: Perfectly balance, high speed, high feed.
All-in-one stock removal and finishing tool.
Has polishing -wiper facet for improved finish.

Especially design for milling, excellent tool for soft, flexible materials​
* On request: Out of Range / Other sizes
TiALN Coated for steels

Request Pricing

Description

wdt_ID Cutting Diameter Flute Length Radius Overall Length Shank Diameter Reach Product Code
1 6mm 6 0,50 90 6 20 79U20600090A
2 6mm 6 1,00 90 6 20 79U20600090B
3 6mm 6 2,00 90 6 20 79U20600090C
4 8mm 8 0,50 100 8 25 79U20800100A
5 8mm 8 1,00 100 8 25 79U20800100B
6 8mm 8 2,00 100 8 25 79U20800100C
7 10mm 10 0,50 100 10 30 79U21000100A
8 10mm 10 1,00 100 10 30 79U21000100B
9 10mm 10 2,00 100 10 30 79U21000100C
10 12mm 12 1,00 100 12 40 79U21200100A
11 12mm 12 2,00 100 12 40 79U21200100B
12 12mm 12 3,00 100 12 40 79U21200100C
13 16mm 16 1,00 110 16 50 79U21600110A
14 16mm 16 2,00 110 16 50 79U21600110B
15 16mm 16 3,00 110 16 50 79U21600110C
16 16mm 16 4,00 110 16 50 79U21600110D
17 20mm 20 1,00 125 20 65 79U22000125A
18 20mm 20 2,00 125 20 65 79U22000125B
19 20mm 20 3,00 125 20 65 79U22000125C
20 20mm 20 4,00 125 20 65 79U22000125D
